Dipping Graphic Paints - 8 Hydrographic Colors

The Dipping Graphic paints allow for hydrographic pattern transfer by dipping the piece into water.

The Dipping paints are poured onto the surface of the water in a dipping tank. Their non-water-miscible formula allows them to spread on the water's surface and solidify without dissolving. and spreading.

The object to be decorated is then delicately dipped: The decoration on the water's surface made with Dipping paints adheres very faithfully to the surface of the piece.

Formula

Monocomponent solvent-based paint

Caution: flammable products.

Reserved for professional use

Destination

All prepared surfaces

Direct adhesion to metals, certain plastics, glass, and ceramics

It is possible to decorate by dipping or "Hydro transfer" any object with a smooth, non-porous surface.

Surface Preparation

We recommend application on a primer/paint*/clearcoat sanded with a grain between P320 and P500

When the support is a raw material like glass, for example, it is important that it be perfectly clean (cleaned, degreased, dry, and dust-free)

Use & Mixing

The product is ready to use

It is deposited on the water's surface by simply pouring it using the dropper caps of the GRAPHIC paints range bottles

Ready-to-use product

The colors are mixable with each other.

After depositing the paint and colors on the water's surface, it is advisable to quickly dip the parts to be printed, without waiting beyond 5 minutes.

It is possible to modify the effects already spread on the water's surface :

• manually, with a ruler or rod

• with thinner, by applying a small amount in certain areas

• it is possible to add colors

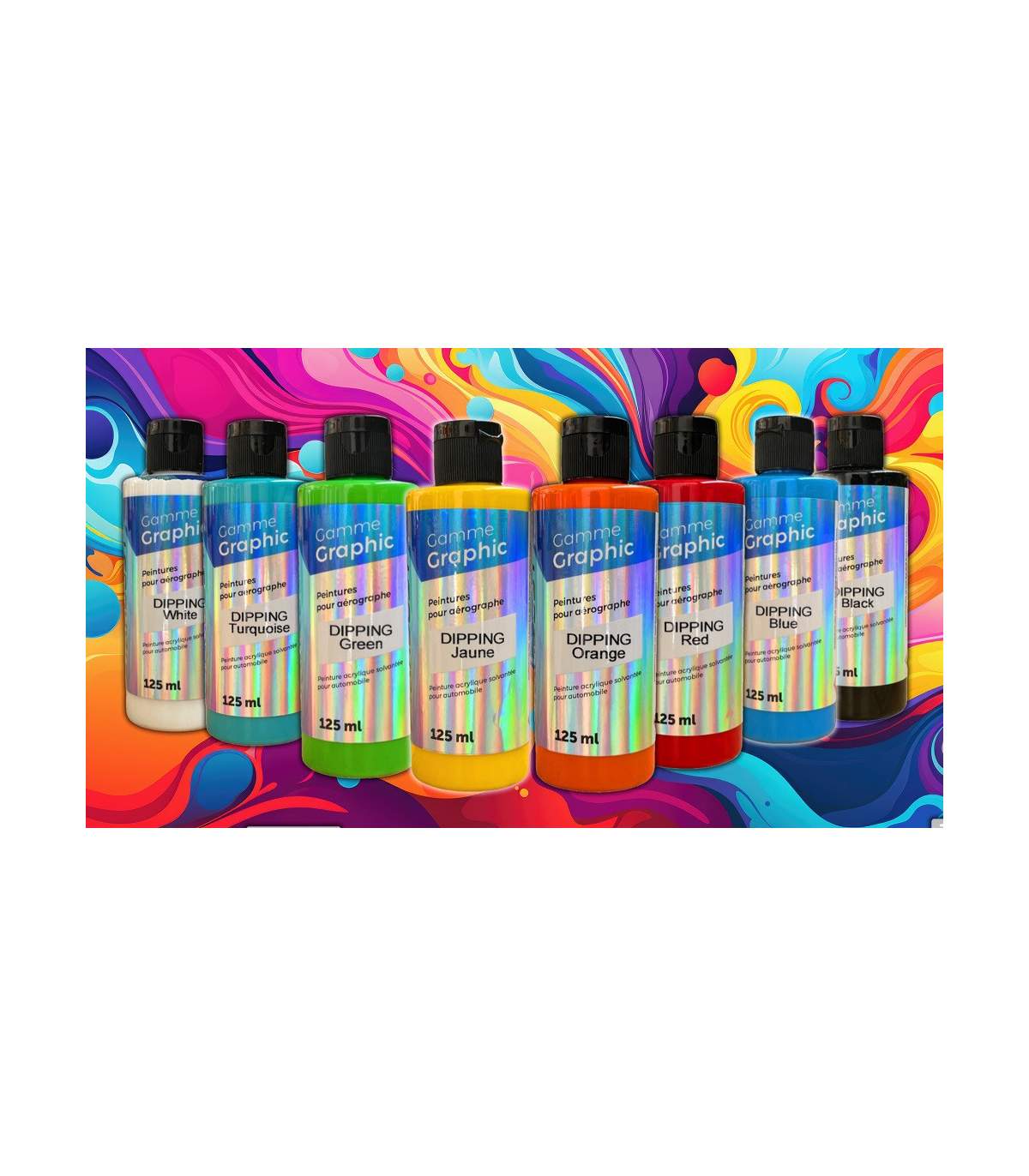

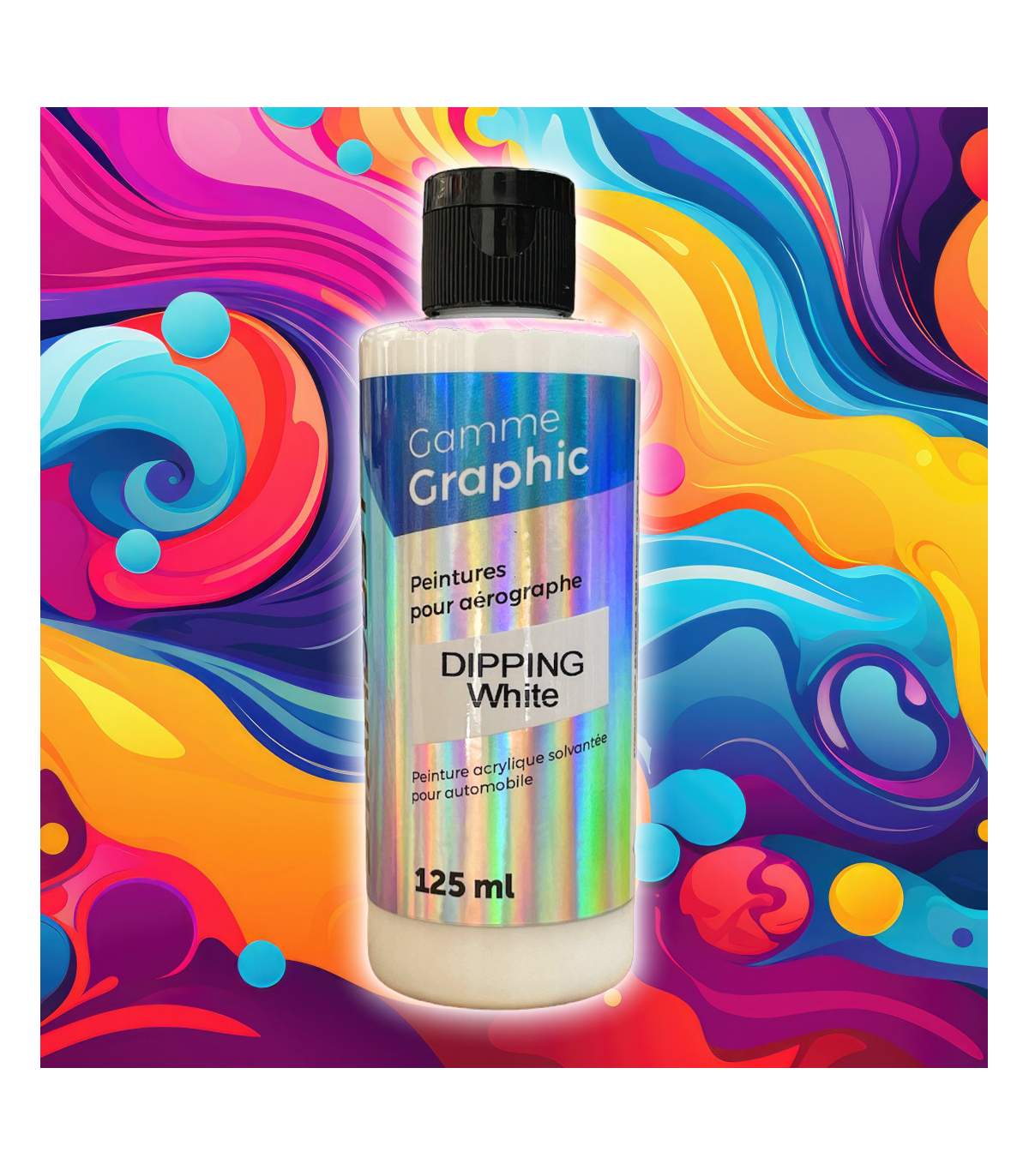

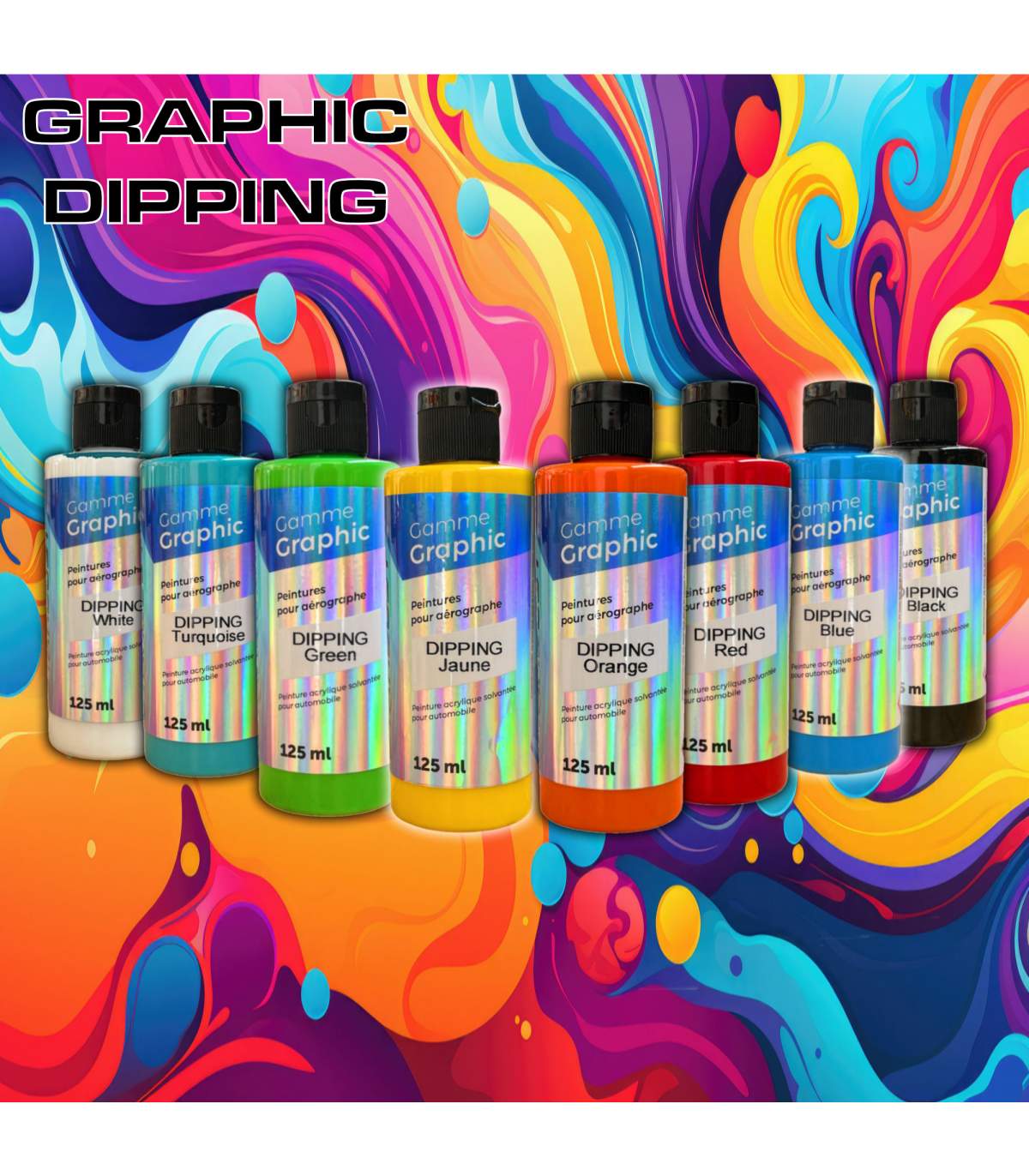

GPH301 PUR WHITE

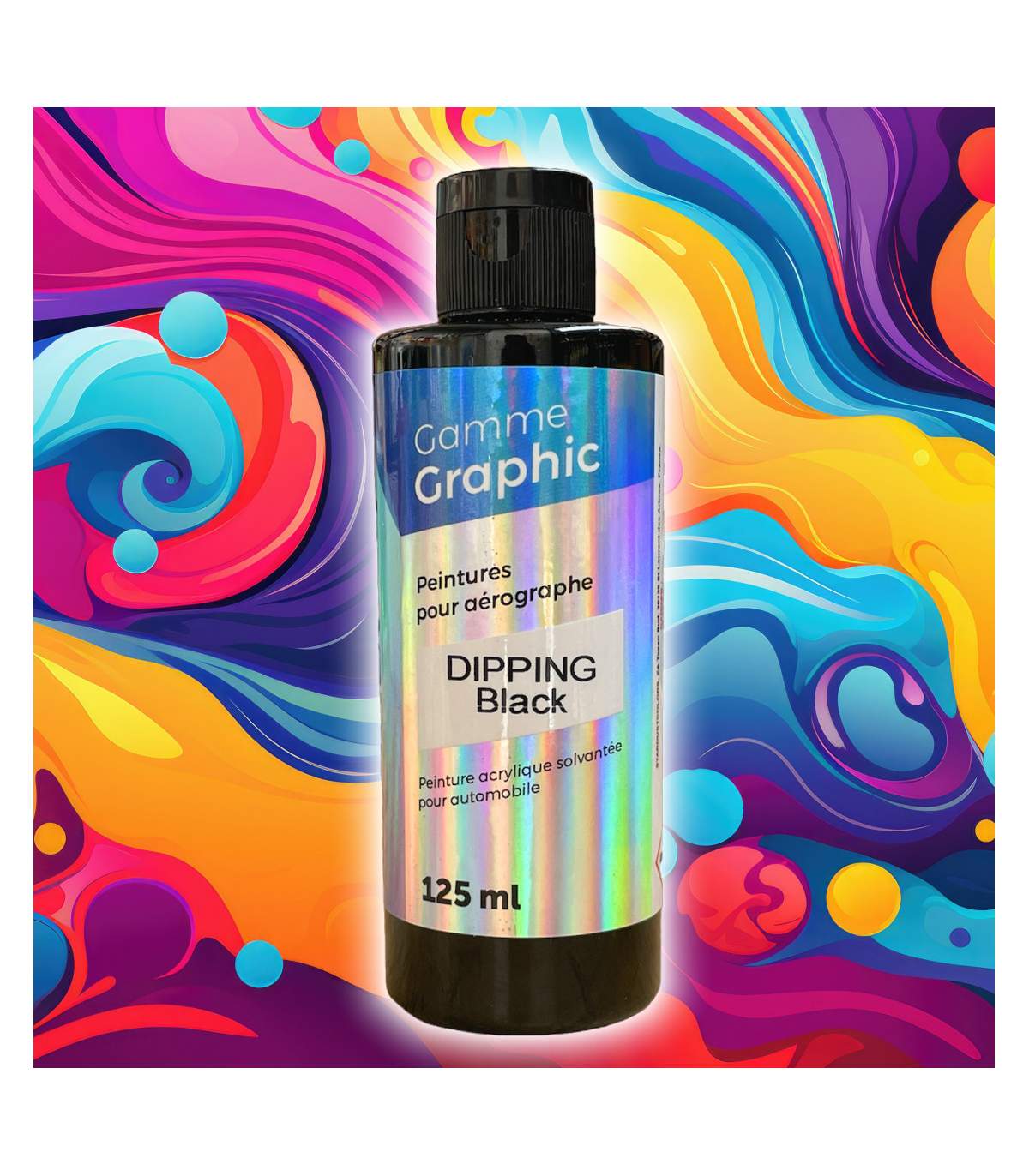

GPH302 PUR BLACK

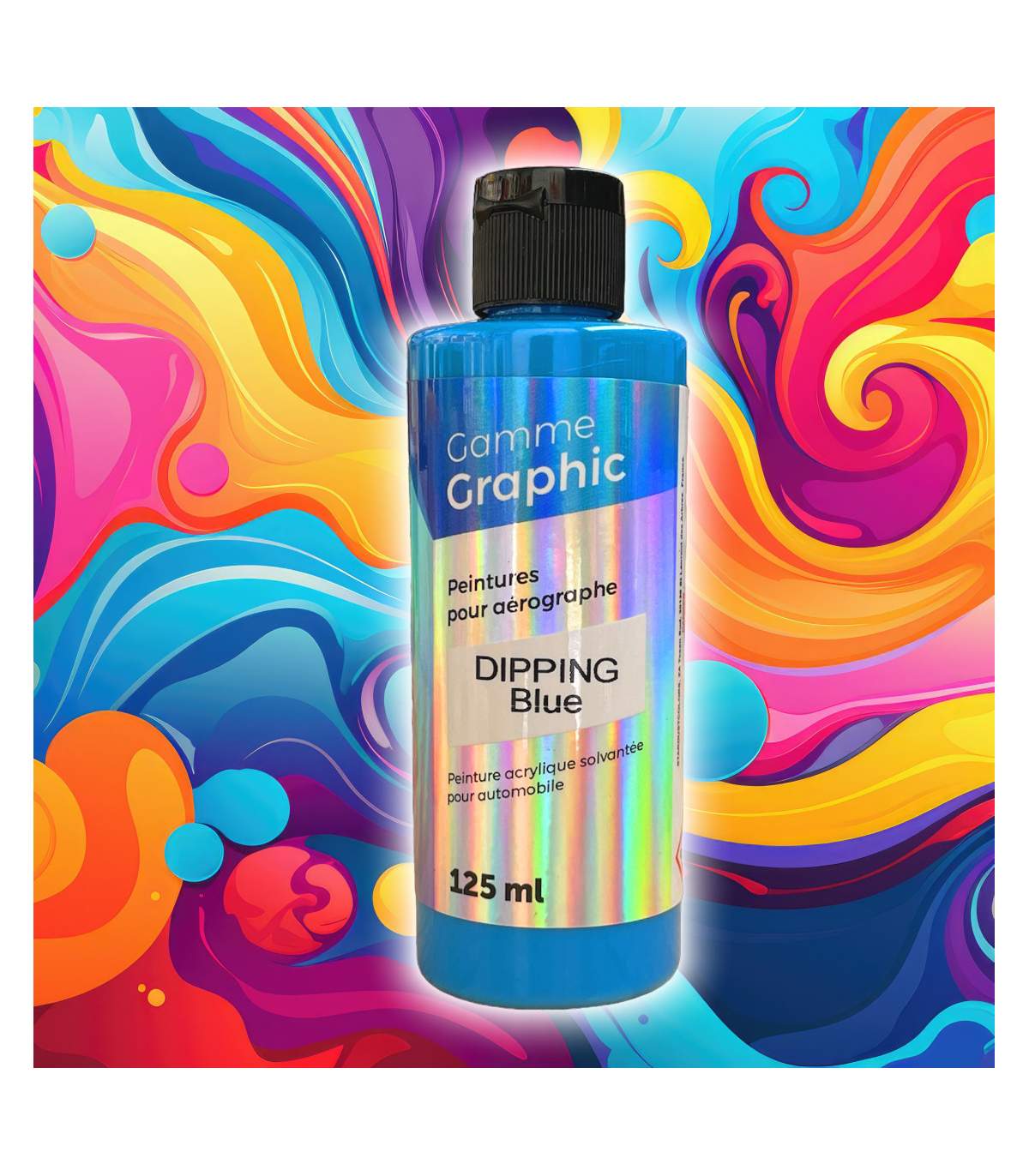

GPH303 BLUE RAL5015

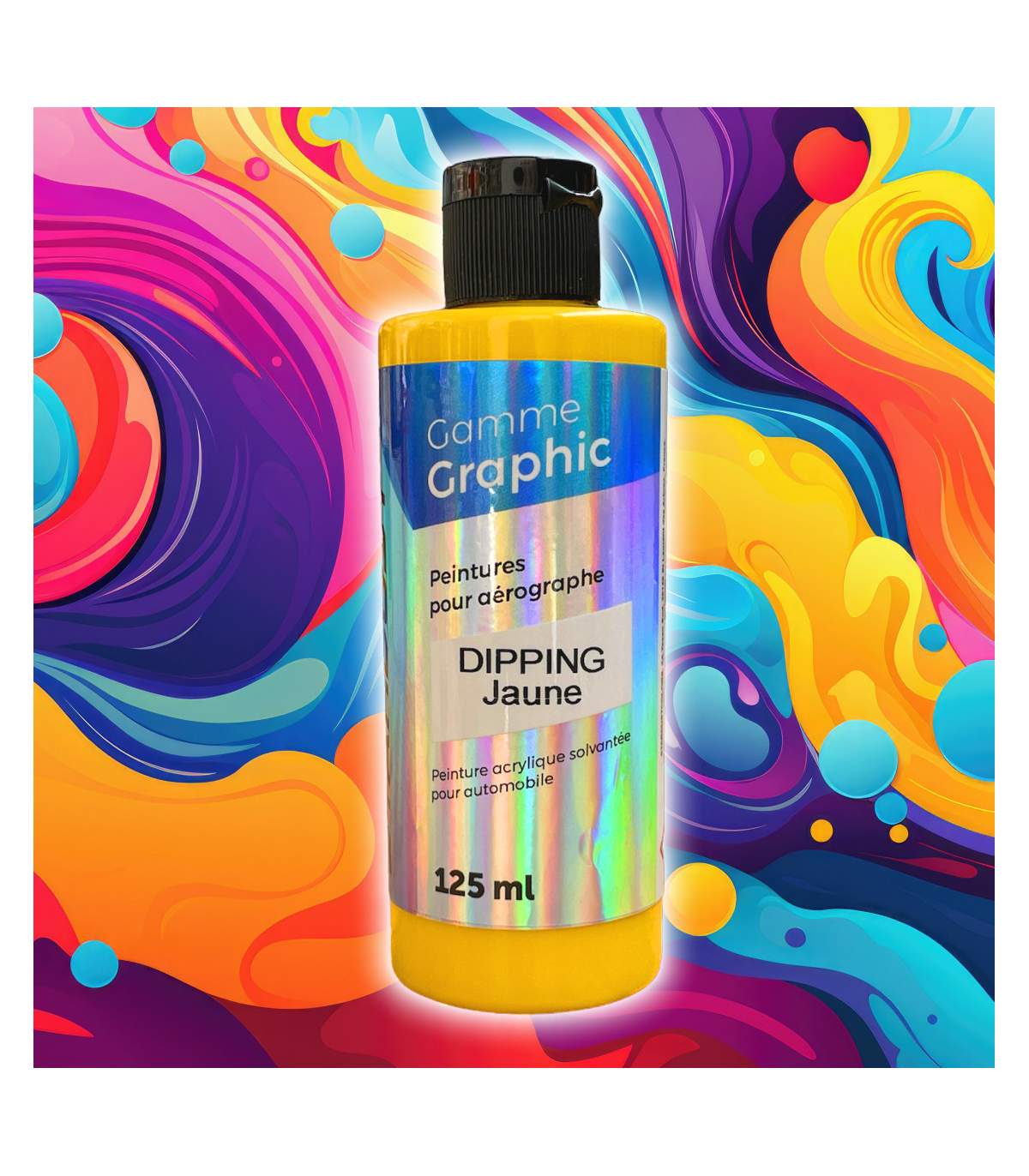

GPH304 YELLOW RAL1021

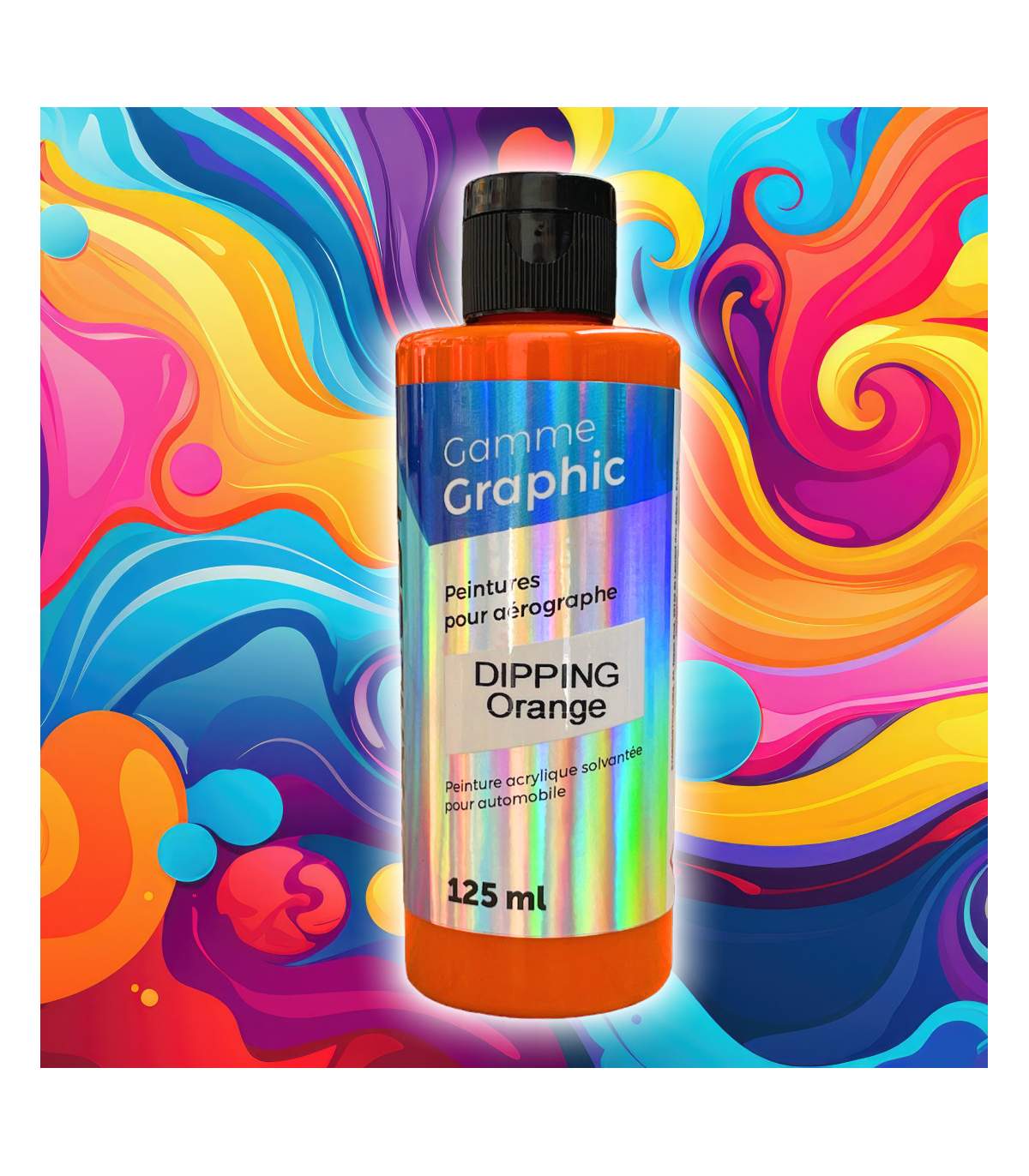

GPH305 ORANGE RAL 2004

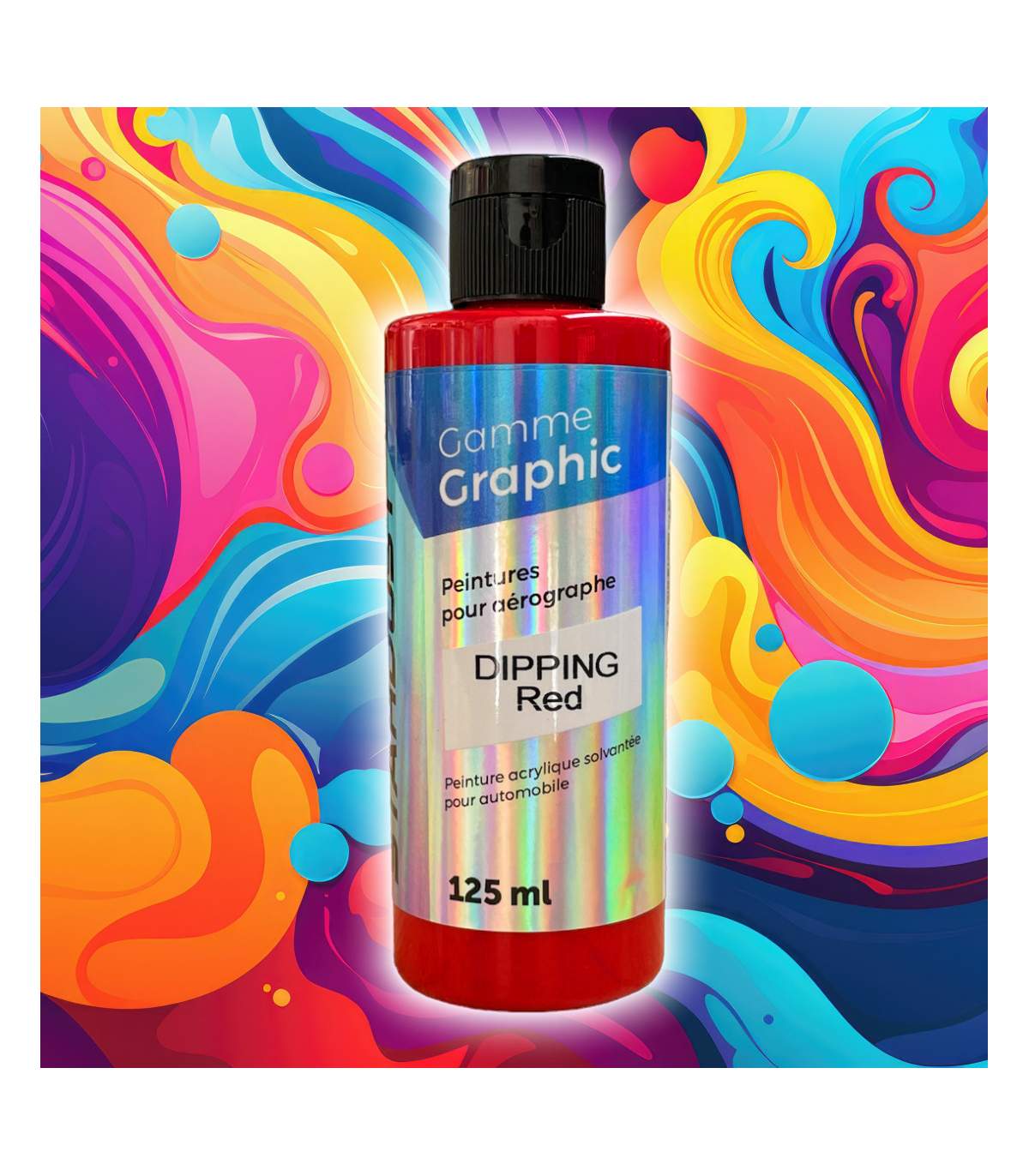

GPH306 RED RAL3002

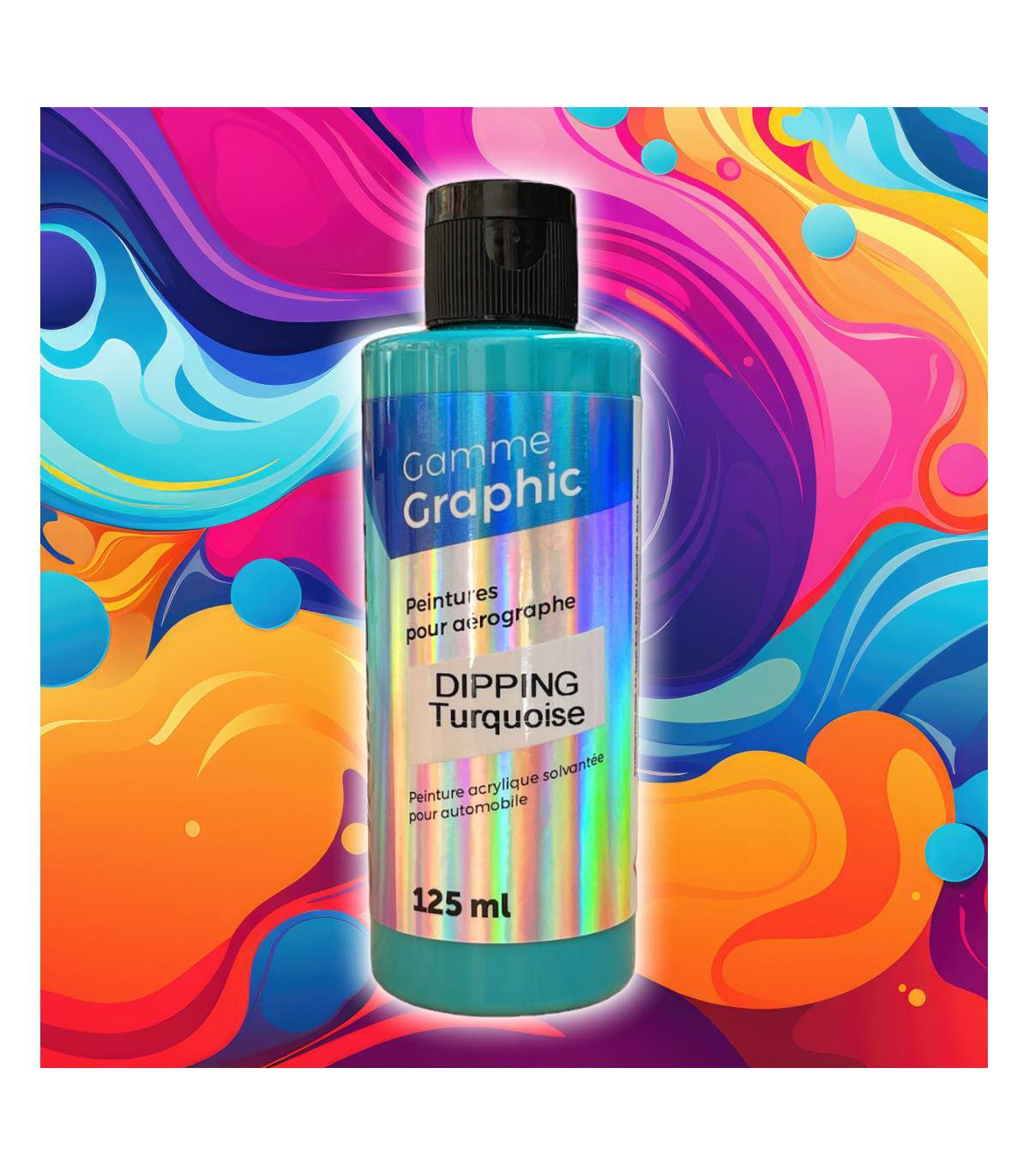

GPH307 TURQUOISE RAL5018

GPH308 GREEN RAL6018

GPH310 TRASPARENT

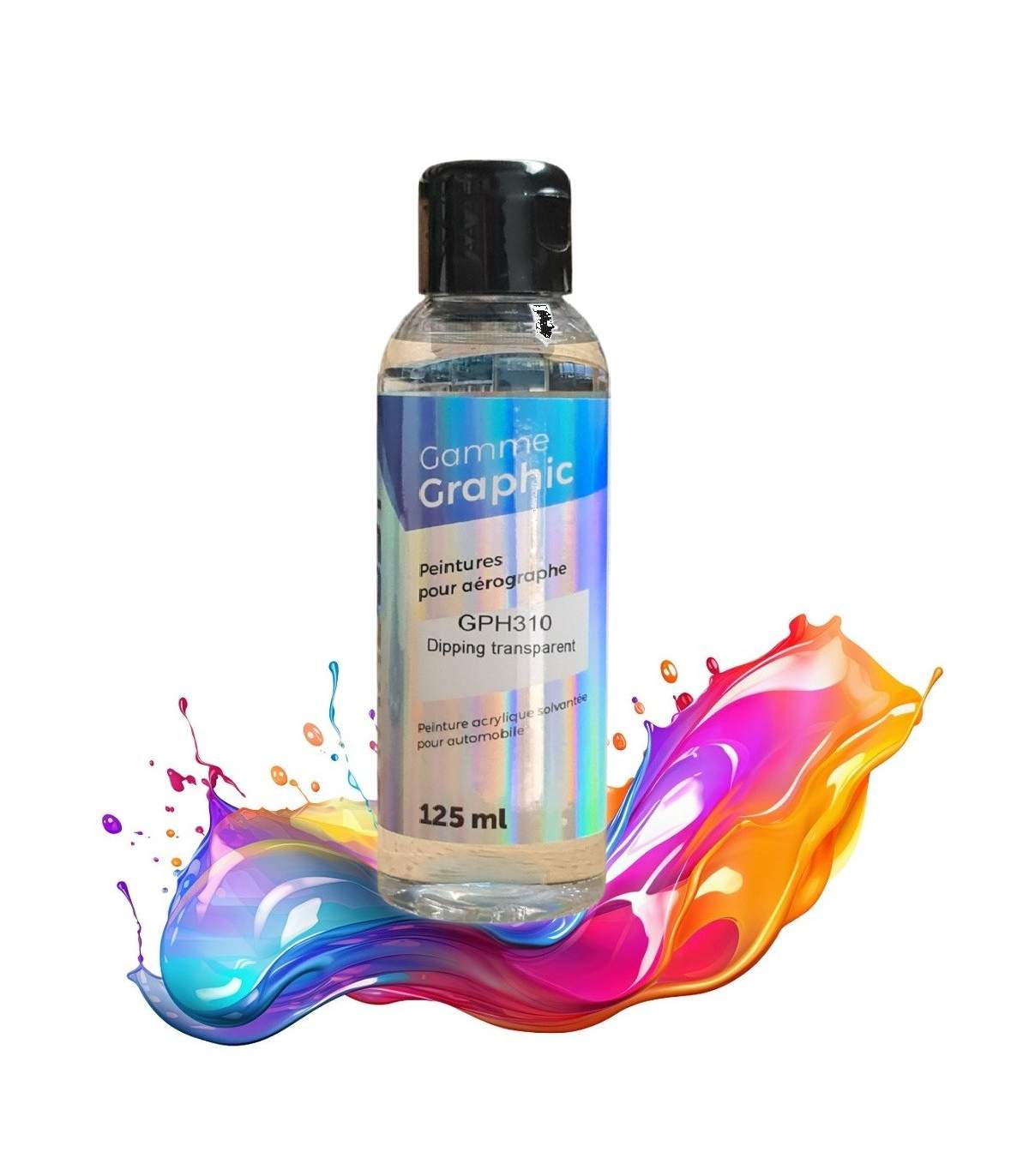

The GPH310 Clear DIP Version
The clear version of DIP paints allows you to create your own colors by simply adding 20% ​​of the concentrated pigment shades of your choice, available in 125 ml, or any concentrated shades for solvent-based bodywork paint systems.

Hygiene safety : refer to the bottom of the page

Coverage & Drying

The dipped and printed parts with the hydrographic decoration must then be left for one or two hours before varnishing with a bodywork topcoat.

Yield 1L

125ml = 0,5m²

Color & Appearance

Opaque, glossy color

Best Practices and Water Discharge

It is forbidden to discharge paint residues into drains and sewers from the water. We recommend filtering the water and collecting any paint residues that are on the water's surface beforehand. Untreated water must be taken to the waste disposal site.

Solvent-based paints are harmful and flammable products. Safety instructions must be followed. These products should not be left within the reach of children. These products are intended for professional use.
