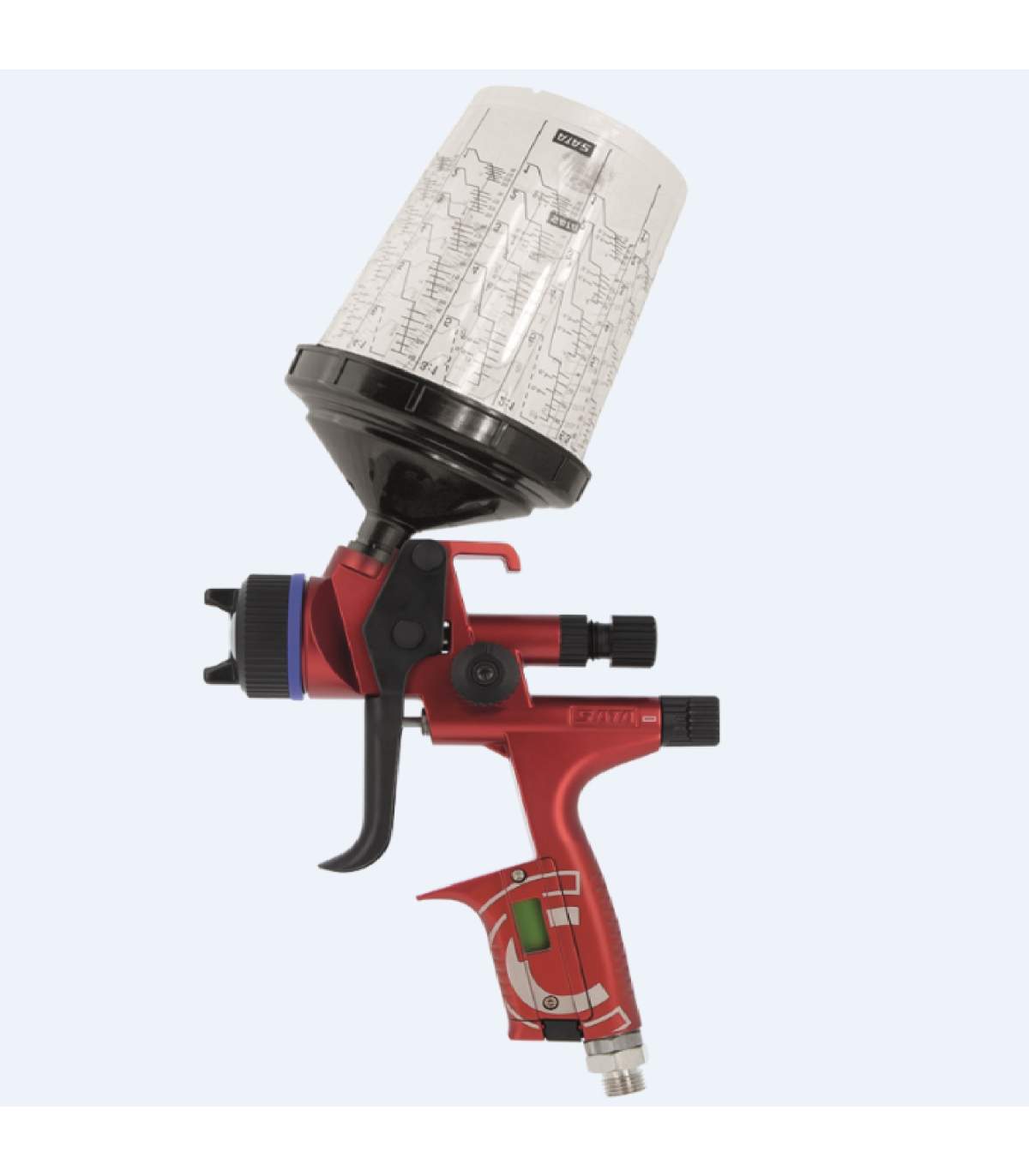

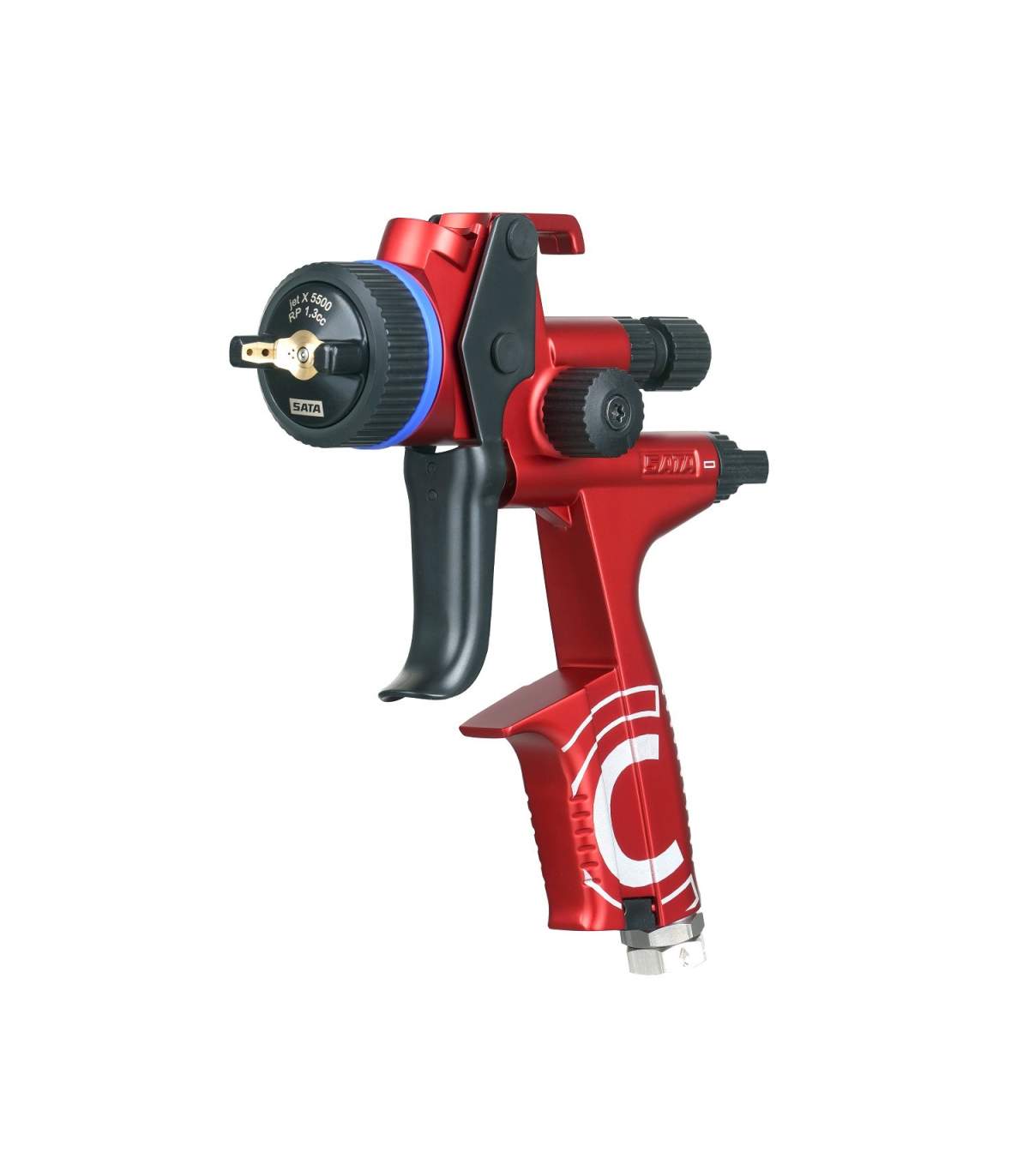

SATAJET X5500 CLEARCOAT RP- 1.4 SATA SPRAY GUN FOR CLEAR COAT

SATAJET X5500 CLEARCOAT RP is a spray gun specially designed for clear coat application.

It’s part of the new generation of ATA spray guns offering high transfer rate and unequalled robustness.

The SATAJET X5500 RP in Varnish Edition convinces with its new projector kit specially developed for varnish application. The optimized product distribution, combined with even finer spraying, allows users to achieve closed wetting even with low layer thicknesses.
The new design with red gun body and attachments in black !
Benefits at a glance:
Special nozzle for varnish based on proven technology of
nozzles I.
Fine and homogeneous spray for varnish application flawless
Closed wetting even with low layer thicknesses
The jet geometry of the nozzles I allows a controlled application




Maintenance and cleaning of the SATAJET X5500 CLEARCOAT RP is greatly facilitated by a new coating and its metal adjustment buttons, rather than plastic material.

Perfectly meets the requirements of new technical paints.
• Faster cleaning: two-part air cap, no more air distribution ring.
• Nozzle “I”: elongated jet spectrum with a short fog zone at the edges and a drier core. -> Slower application speed for more control.

Available in 2 versions:
- Standard
- Digital

The digital version ensures optimum pressure adjustment.
Digital pressure indication for precise adjustment, maximum colour accuracy and good reproducibility of the application result.




Package Contents:
- SATAJET X5500 CLEARCOAT RP
- 2 disposable buckets: 0.6L, 0.9L (one of each)
- Tool Kit (Universal wrench, Multi-tool, Cleaning Brush, Clips Color Code System, Paint Sieve, Air distribution ring extraction pin) Simplified round/flat spray adjustment in half a turn


Technical informations:

- 1.4mm nozzle
- 2 disposable buckets: 0.6L, 0.9L (one of each)
- Weight: 476g (without bucket)
- 1/4GM Air connector
- Working air pressure: 2.0bar
- Air consumption: 290L per minute
- Projection distance: 17-21cm
