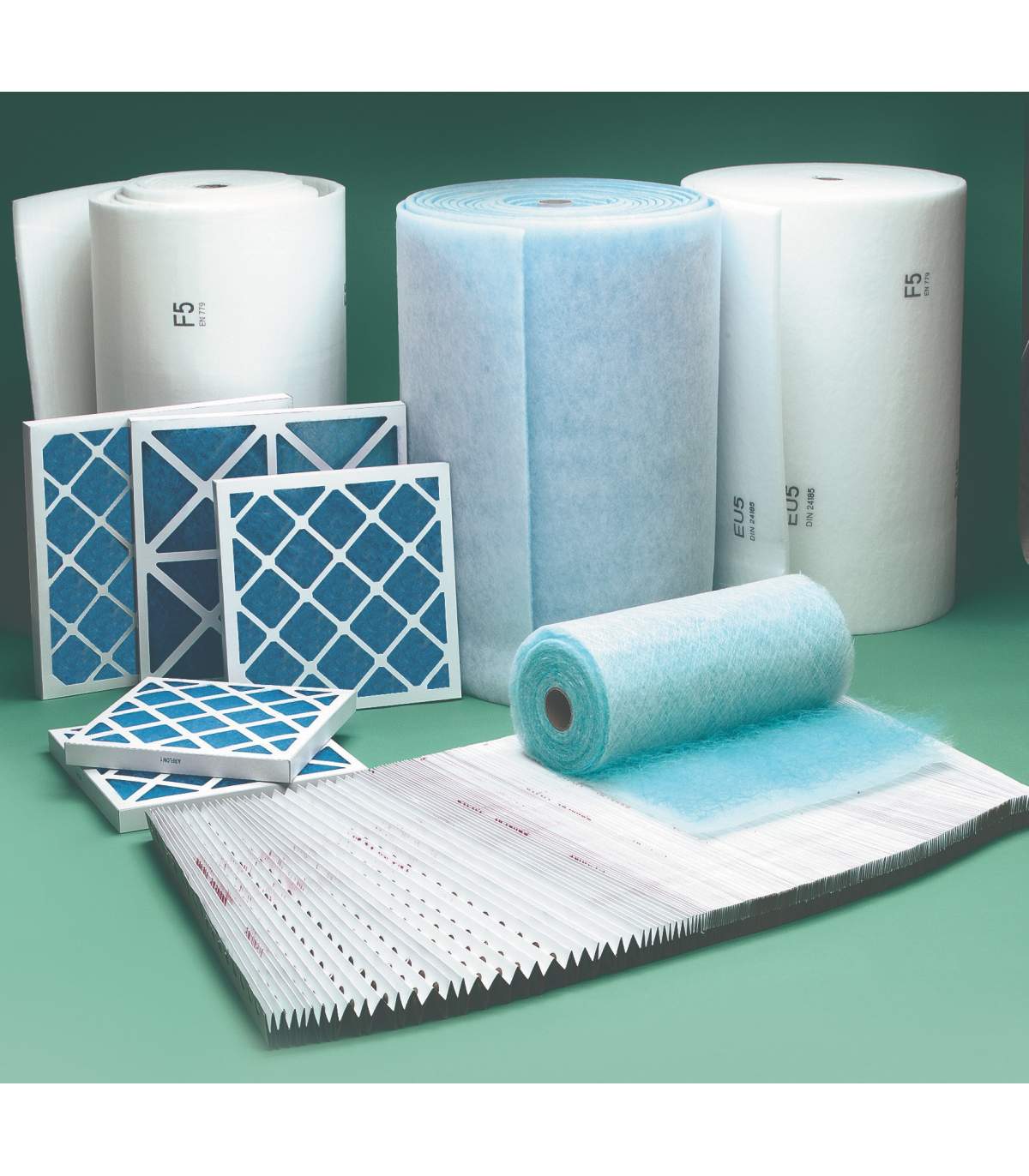

Filters for paint booths

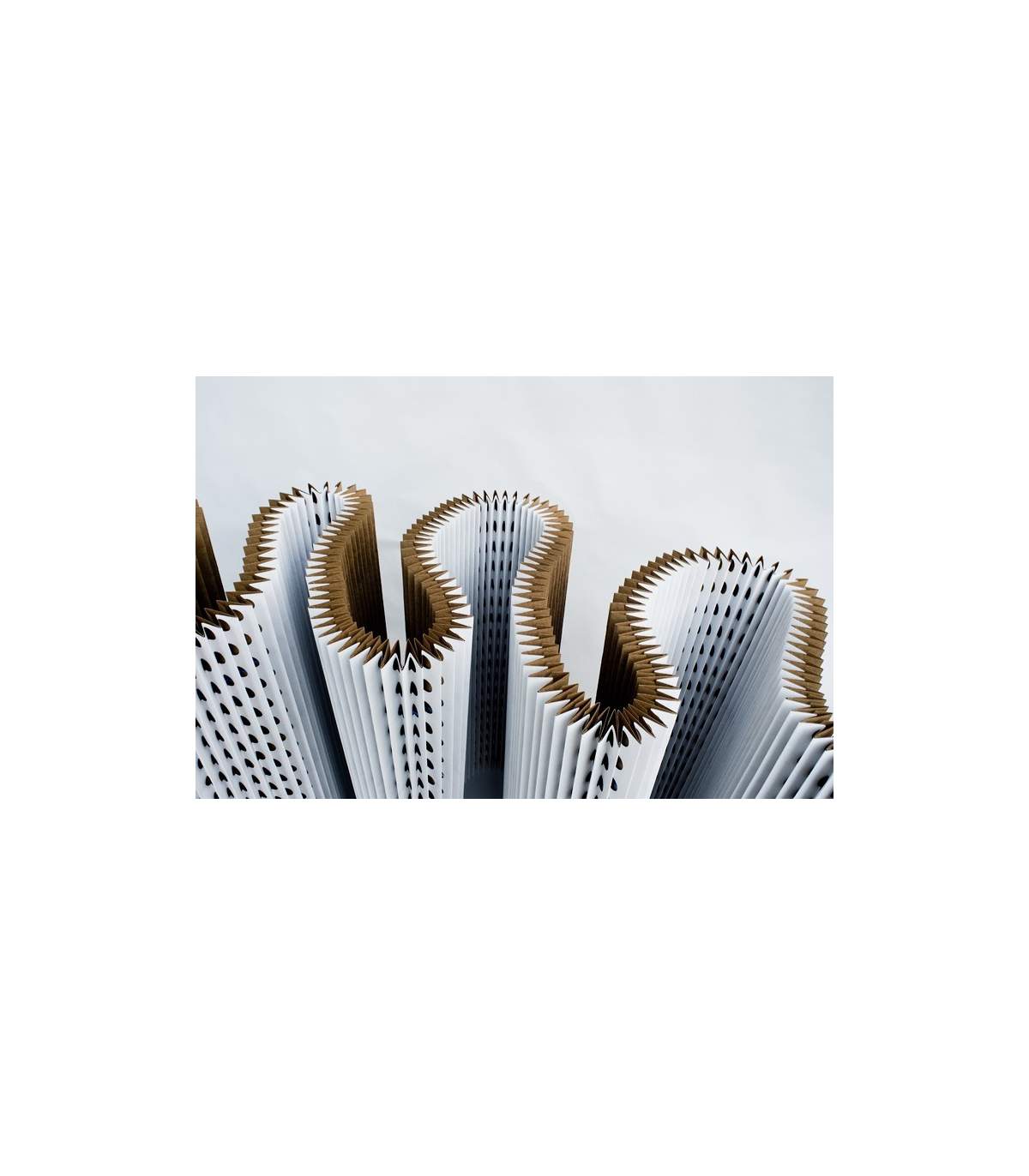

AF-1: Extraction Filter - 0.9m x 9m

Accordion style pleated cardboard.

Our most popular "Standard" filter consists of two sheets of heavy "Kraft" type paper, pleated and glued, fitted with an extension limiter for optimal performance.

Use:

Designed to capture wet solid or liquid particles: high solid enamels, baked and air dried enamels, glues, oils, stains, clear coats, fiberglass, epoxides, asphalts, transparent layers, tar, Teflon...

High capacity:

The filter design integrates 2.5"deep pockets, which means that the filter is capable of collecting up to 6 times the capacity of common mesh type filters.

Main features and benefits

Up to 98.1% filtration efficiency **

High painting capacity - up to 18Kg // M² **

Extension limiter - guarantees maximum efficiency.

** depends on the paint used

Features:

Filter construction: Highly resistant, self-supporting, perforated, pleated and stapled kraft cardboard paper. Glossy white finish.

Max. recommended air flow rate: 0.5m/s to 1.0m/s (100ft/min. to 200ft/min.) Normal 0.7m/s (140fpm)

Pressure Differential:

at 0.25m/s = 8Pa

at 0.50m/s = 20Pa

at 0.75m/s = 30Pa (0.12"SWG)

Max.130-250Pa (0.52"-1.00"SWG)

Optimum Pleat Expansion: 8 ply per linear foot (30.4cm)

Performance: Up to 98%.

Capacity: Up to 18kg/square meter

Dimensions: 0.9m x 9m
