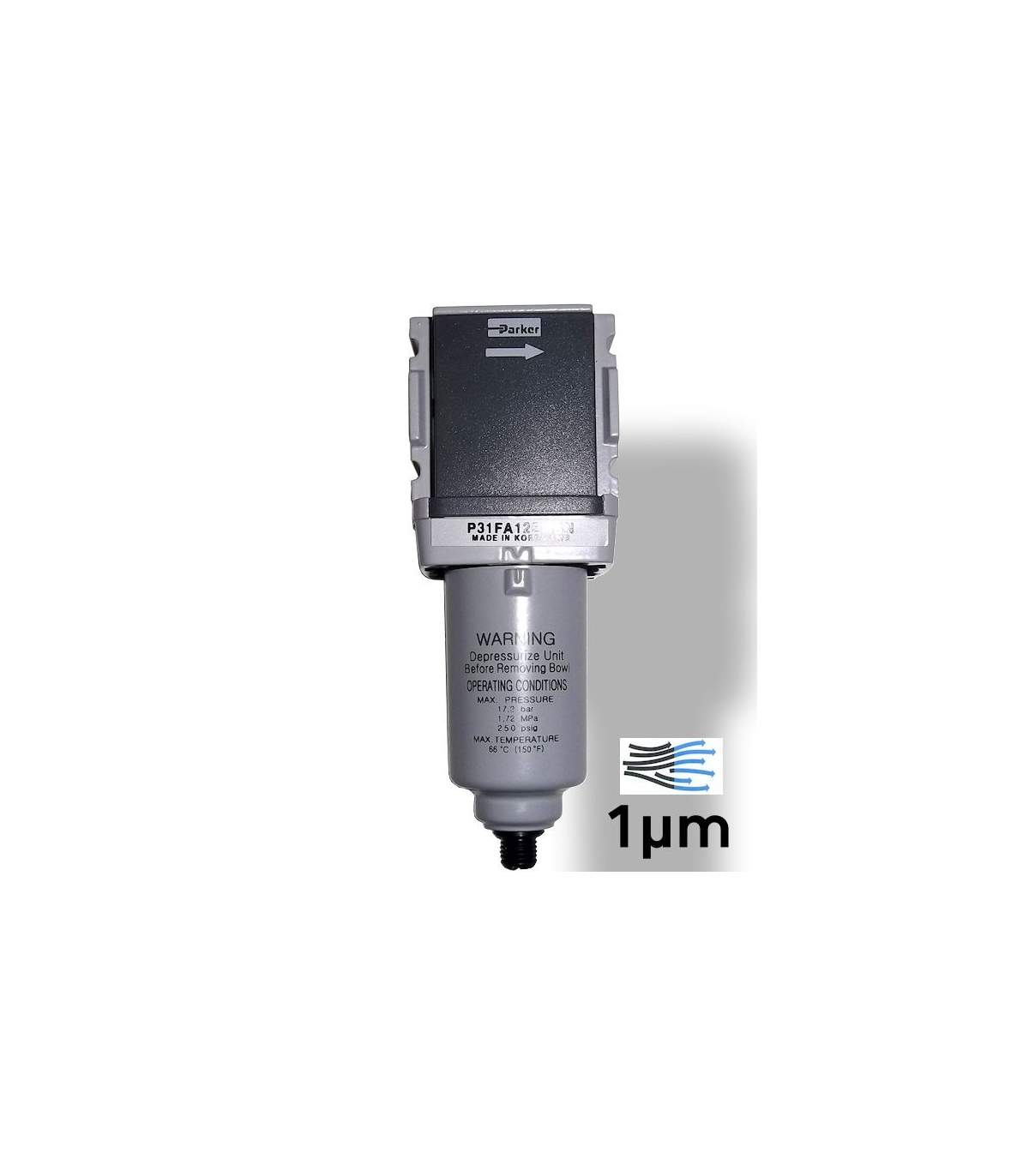

Particulate filter EMBN (1µm) (1/4 Thread)

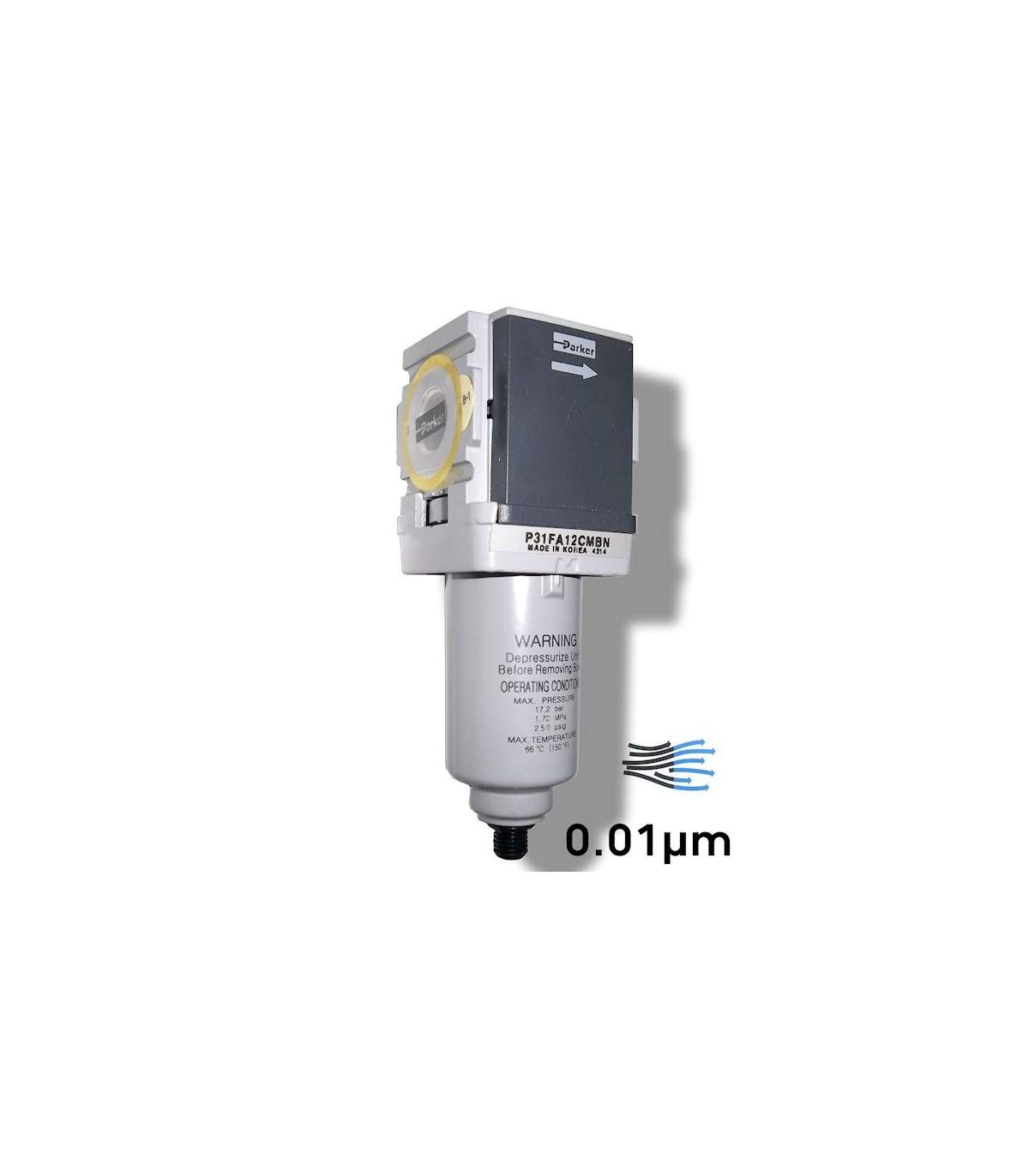

Coalescing filter CMBN (0.01µm) (1/4 Thread)
Filter set MBR 1µm + 0.01µm + regulator (1/2 or 3/8 thread at the user's choice)
Our filters allow to purify compressed air from air compressors for spray guns designed for: quality work, the removal of silicone craters, microbubbles and residual faults.
They are placed in the air supply system, anywhere between the air compressor (source) and the gun (output).
Filters may be used alone, doubled, or coupled:
For example: A 1µm particulate filter + a 0.01µm coalescing filter give an efficiency of 99.99%
Our filters effectively retain fine particles of water, grease or dirt.
Tip: For maximum efficiency and to obtain a perfectly pure air quality, the particulate filter is first placed to block the largest part of the impurities, then the coalescing filter is added, which is capable of filtering ultrafine particles up to one-hundredth of a micron!
Our EMBN particulate filter and CMBN coalescing filter are equipped with a purge button, which allows you to remove the dirty moisture accumulated by a simple pressure.
Air flow :
CMBN / EMBN:
Flow: 12 dm3 / s or 43.2m3 / h
Flow M3 / h at 7 bars: from 50 to 85, depending on the inlet and outlet diameters (see FT to download at the bottom of the page)
Pressure: up to 17 bars
Dimensions: 116.3mm X 40mm X 42.7mm
Connection: 1/4 Thread (available on our website, see below)
Quality: Our filter range consists of professional quality and durable articles, selected among the most renowned manufacturers.
Our MBR filter offer:
Water-tight mounted assembly consisting of:
- 1 micron filter - 1 1µm
- 1 submicron filter MFB - 0,01µm
- 1 regulator with pressure gauge
- 2 wall mounts
- 1 safety connection ISI 06 or ESI 07
