48W Ultra Violet Led drying lamp for paint

Unlike more conventional methods, UV can dry coatings in a matter of seconds or minutes.

The fast drying times of the UV Curing Lamp for Paints help ensure a more even finish across the entire substrate, as dust and other foreign matter has less time or opportunity to contaminate the coating.
In addition, the perfect shine of the freshly painted varnish is fixed almost immediately.

Accelerated drying :

The power of our UV paint dryer :
With a consumption of only 48W, its drying times can be as low as just 20 seconds !
For an area of 80cm x 100cm.

Possible uses :

* Automobile paint drying / Bodywork repairs
* Drying of varnishes / coatings on wood
* Hardening of coatings on plastics
* Drying of heat sensitive materials

No warm-up :

In addition to fast drying times, UV emits minimal heat which
means the UV paint dryer can be used on heat sensitive materials such as fabrics, plastics or wood.

Tests carried out with paints from one of the world leaders :

Manufacturers show that this UV paint dryer is ideal for use with spray or spray (aerosol) applied paints.

UV curing : A more efficient technology than traditional IR lamps

Ultraviolet paint curing continues to grow in popularity due to its many benefits.
The Victory UV Paint Dryer is very energy efficient as it uses 20 ultraviolet LEDs in the lamp cassette, consuming 48 watts.

48 W Led UV corresponds to the power of 1000 W in IR.
The expected lamp life for the unit is 40,000 hours

Use :

Distance to the support: it does not heat up, so there is no danger of heating too close to the paint
The optimum distance to the paint is 200mm, from this distance it will give you a coverage of 40cm

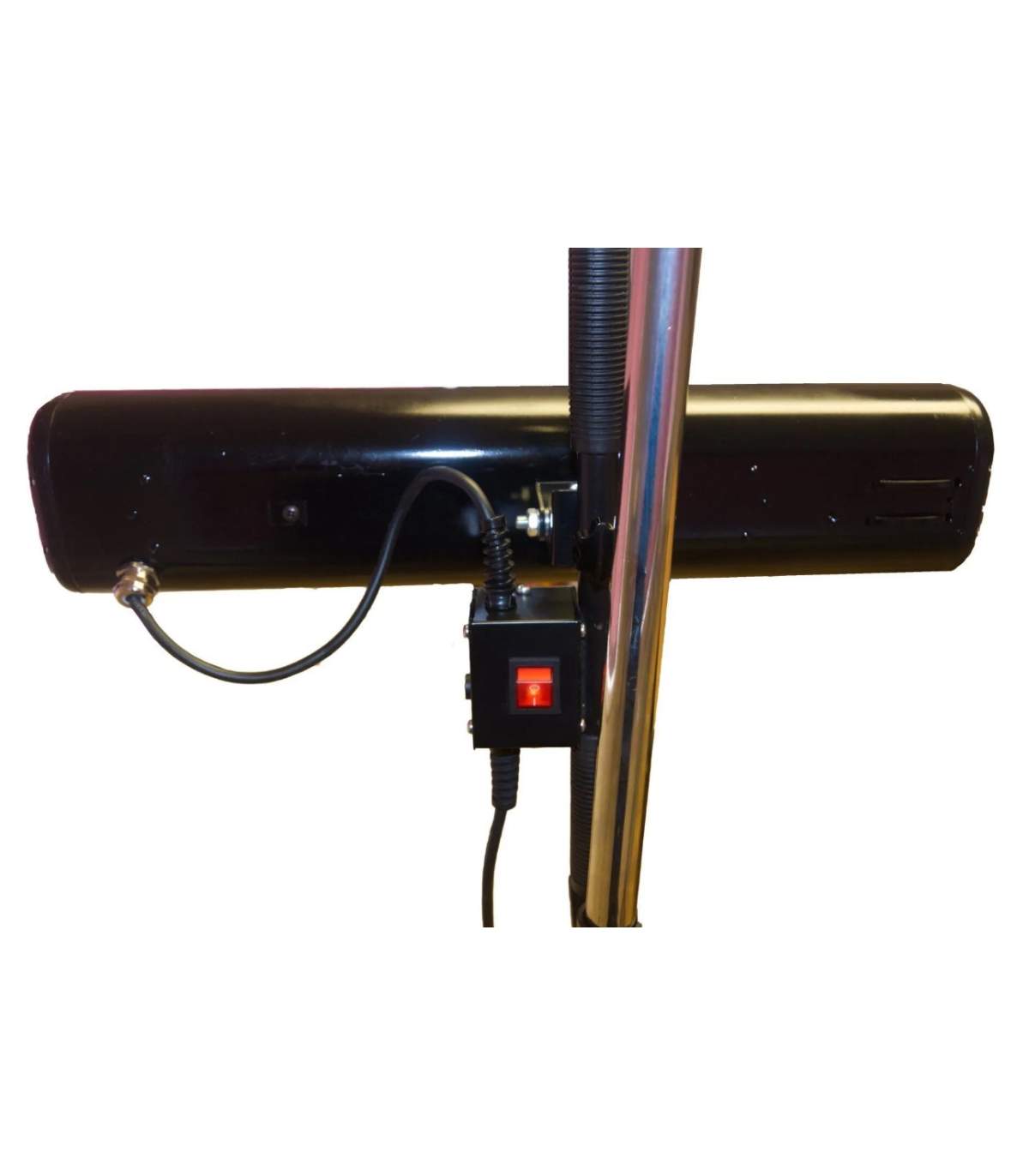

The UV dryer is easily turned on via the switch on the back of the equipment unit.

A 45 degree bracket attachment allows the unit to be tilted up or down to achieve the desired angle.

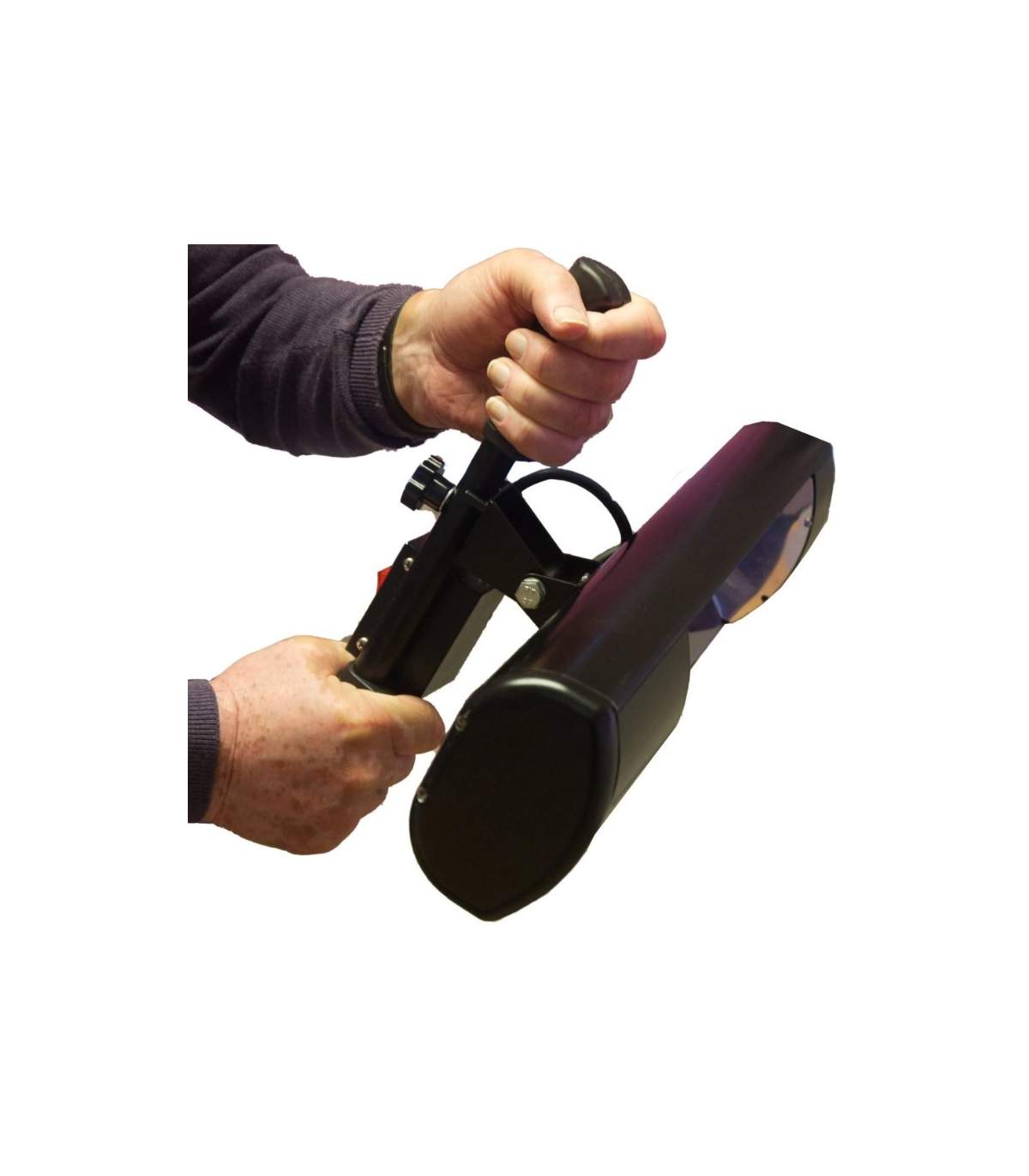

The portable UV curing lamp comes with a handle. It is designed to be held in the hand.
We also offer it with an additional foot (see drop-down list).

Plug: Type G (English)
English instructions.

On-air info :

Ultra violet waves are visible UVs (400nm) and invisible UVs (365nm-250nm). These are ultra-short and ultra-energetic waves, much more than infrared waves (IR) which evolve around 800nm and beyond.

The unit has a UV wavelength of 385nm as standard,

We are also able to supply wavelengths from 365 to 405µm, contact us.
