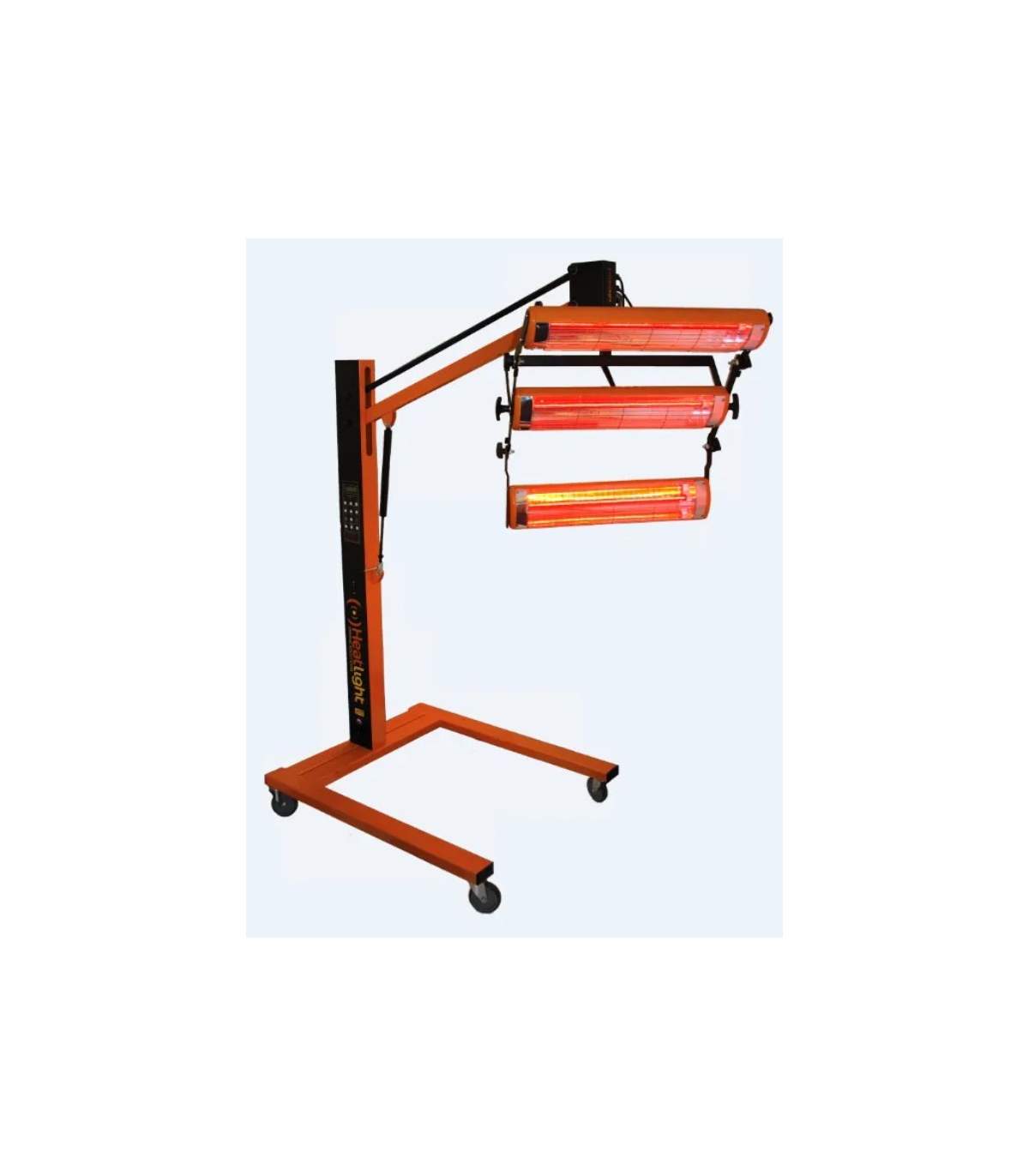

Mobile bodywork infrared lamp 3000W – with mobile arm and control

Large heated infra-red lamp for body painting with mobile arm and digital control

• Flexible and mobile
• Ultra-efficient efficient
• Short wave infrared light
• Equipment made in Europe, brand : VictoryʼsHeatlight
• Specialist in portable or large infrared dryers for bodywork paints

The infrared dryer uses 1 kiloWatt anti-glare lamps installed in individual cassettes to deliver 3 kW of drying heat.

The lamps emit “short wave” type infrared heat ideal for optimizing
drying of water-based paints.

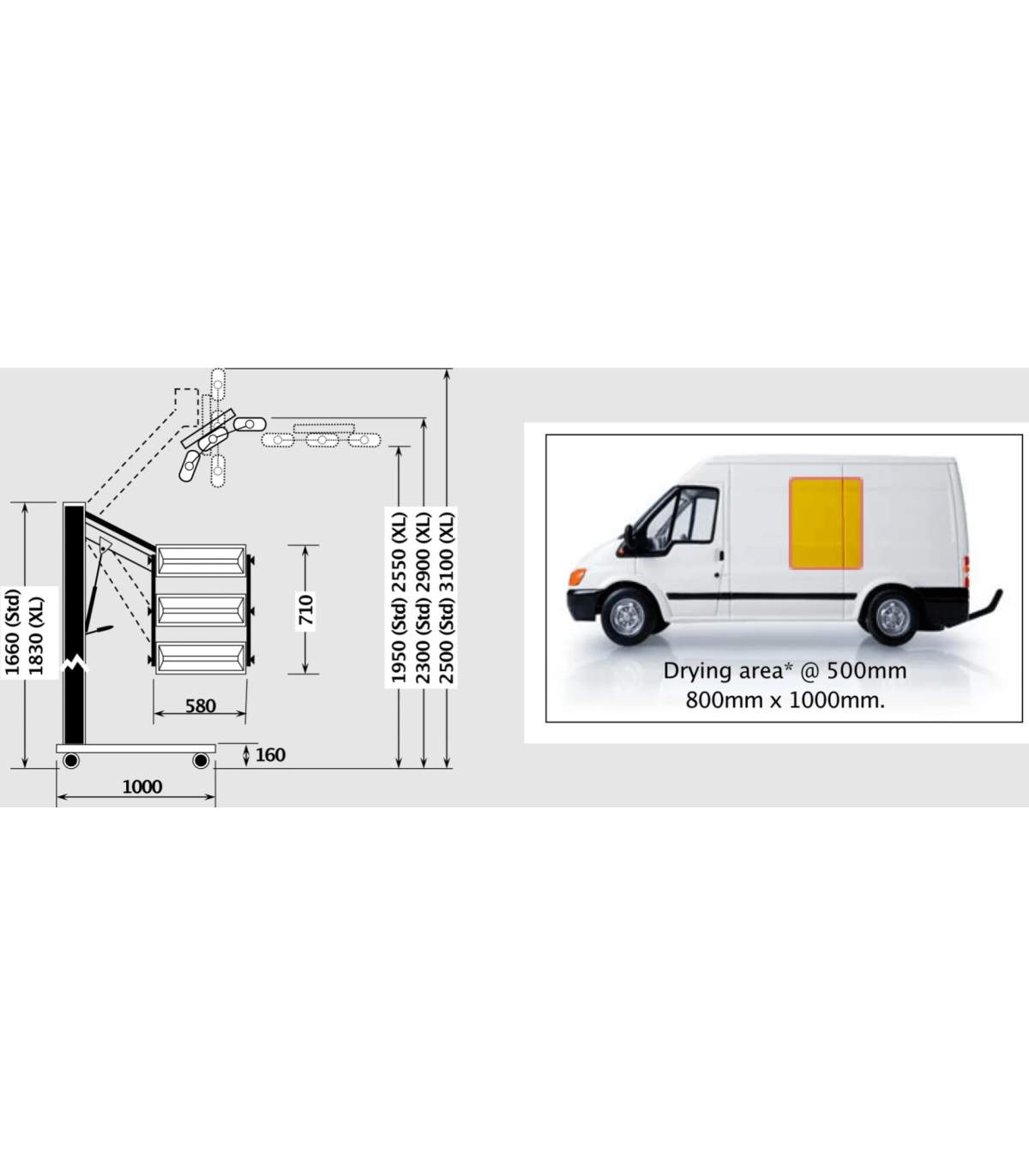

Drying of the paint at 50 cm for an area of 80cm x 100cm

The 3kW infrared dryers are composed of folding and adjustable arms, which can be locked in the ideal position around vehicle shapes and paint touch-up areas.

The VLP30V infrared curing lamps also allow the power to be adjusted according to the distance. There are also sensors to control temperature/distance.

Fast and effective :

Large Victory® paint dryers are economical and environmentally friendly because they use short-wave infrared - the form of energy that offers the best result/consumption ratio for drying and curing water-based paints, lacquers and solvent-based varnishes.

Time savings of up to 80% are observed compared to conventional systems, and drying times are typically reduced by 45 to
10 minutes.
Quickly freed up work areas and energy savings are the main advantages provided by IR lamps.

Durability and quality : the know-how of the specialist in lamp dryers VICTORY®

Victory Shortwave IR Curing Lamps are high quality, professional equipment that withstands heavy use and comfortably lasts 20,000 hours.
Victory infrared dryer reflectors have been carefully designed to maximize efficiency by evenly distributing heat over the widest possible area.

● Designed and manufactured in the UK
● Made from premium quality steel and aluminum
● Full warranty and spare parts available within 24 hours
● Low glare lamps for eye safety in the workplace
● Lockable rear wheels
● Wide wheels for rolling on gratings
● Individually switched cassettes
● Horizontal or vertical cassette operation
● Long lamp life up to 20,000 hours
● Lockable gas spring to fix arm height
● Reduced energy consumption; no fans or filter change

Control Options :

Different configurations are possible thanks to the electronic control panel :

Standard Commands :

99 minute programmable electronic timer
Adjustable parameters for "flash" or cooking.
Adjustable temperature on both the "flash" and cooking cycle.
3 preset memory functions.
Display of temperature, time for flash and cooking cycles.

Standard Controls + Distance/Temperature Sensors :

Adjustable temperature on flash and cooking cycles.
The electronic optical sensor adjusts the heat automatically during the cycle.
Digital distance sensor with automatic safety shut-off if the unit is moved too close to the support

Technical data : VLP30 infrared dryer

Wattage : 3000
Coverage area in cm : 80x100
Minimum operating distance in cm : 50
Supply voltage (V) 200 – 240 50/60Hz
Single-phase current (A) 12.5 1
Three-phase current / phase (A) 4.25
Lamp guaranteed for 20,000 hours

Spare lamps :

On our site ; we offer replacement infrared lamps at an economical price.
In stock and delivered in 48h*

*according to general conditions.

Optional large format IR dryers on order :

We can offer 4.5 or 6 kW versions suitable for large vehicles.
with lamps that can dry surfaces of 125cm x 100cm or even 200cm x 100cm. at a distance of 50 cm
