T5 Graphene 9H Hydrophobic – Nano Ceramic Coating

What is a nano ceramic coating?

It is a transparent liquid product designed to protect surfaces. The nano ceramic coating is applied by spraying or with an applicator pad on bodywork (or other substrates*) and, after evaporation and curing, forms a microscopically thin film (about one micron per layer) with extreme hardness (9H – the highest level).

Hydrophobic :

Liquids cannot adhere to or spread over the T5 Graphene-coated surface, thanks to its very high surface tension properties. Water rolls off and drains away, while dirt does not stick.

Properties

The protective qualities of nano ceramic coatings are numerous and remarkable:

► Hydrophobic : liquids cannot settle on the surface

► Scratch-resistant: far superior to all automotive Topcoats (9H)

► Strong UV resistance

► Corrosion resistance

Tested and approved

Stardust conducted a meticulous selection and testing process among many products and chose to distribute TonYin. From the wide range of available options worldwide, a series of tests identified the most reliable, durable, and genuinely effective product.

2025 version with Graphene

9H Pro with integrated graphene, featuring the latest formula and all improvements from previous versions.

Coverage: 1 × 50 ml kit = 1 layer on one medium-sized saloon car.

Product application

Step 1 – Wash the vehicle before application.

Step 2 – Correct the paintwork by sanding and polishing.

Step 3 – Clean the surface with a degreaser, ensuring it is perfectly clean and dry. For deep cleaning, use the Claybar

Step 4 – Apply the product evenly, section by section

Step 5 – Spread and inspect during drying/evaporation. Check and correct any spreading issues while the product is still soft.

Step 6 – Wipe off with a clean microfibre cloth after about one minute (the wiping time depends on the season and location; for best results, wipe before the coating becomes difficult to remove).

Step 7 – Allow 24 hours for drying and curing. For best performance, two coats are recommended, with the second applied after two hours. It is advisable to wait seven days before washing the vehicle. To maximise the coating’s lifespan, wash the vehicle every two weeks using appropriate cleaning techniques.

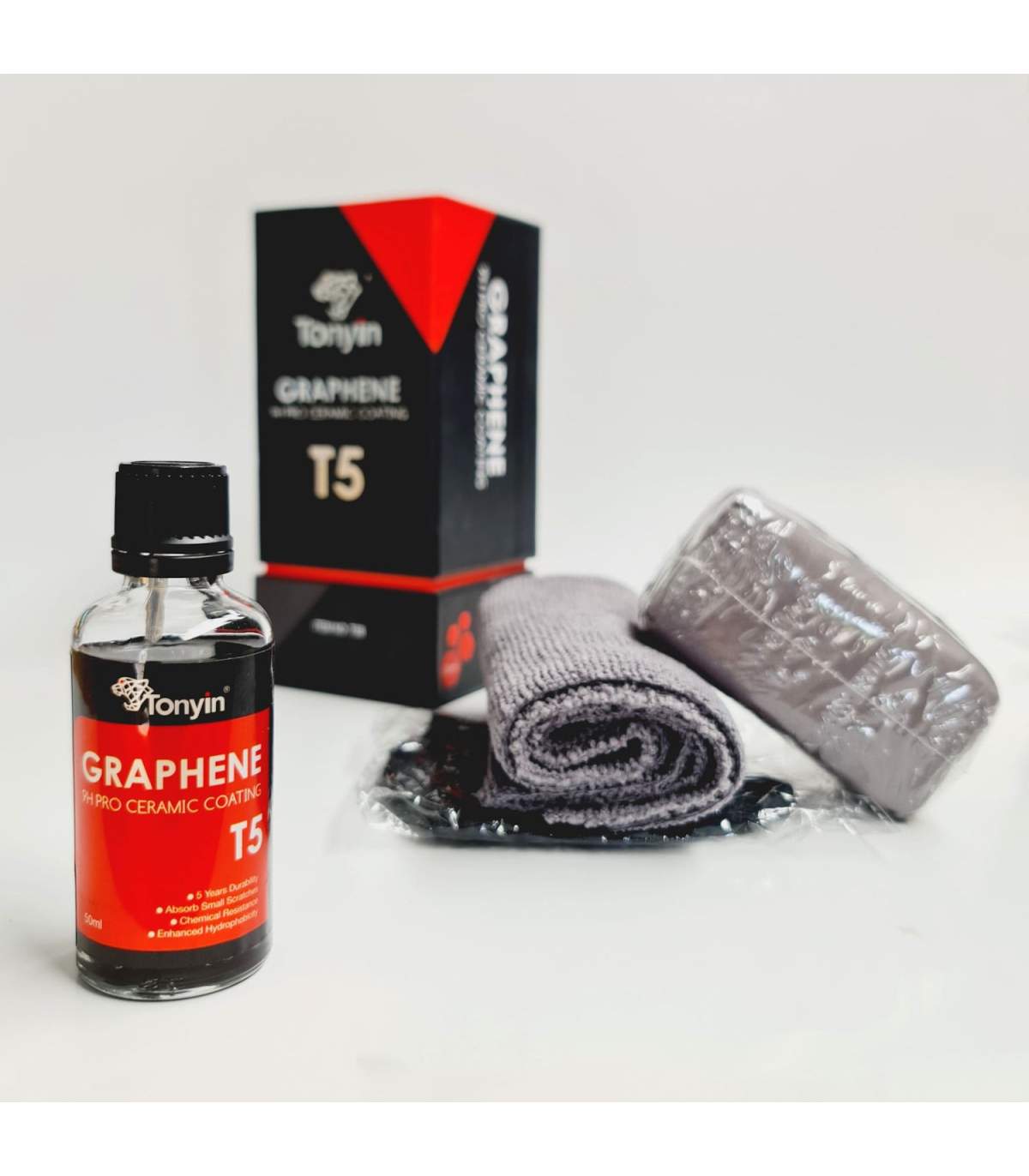

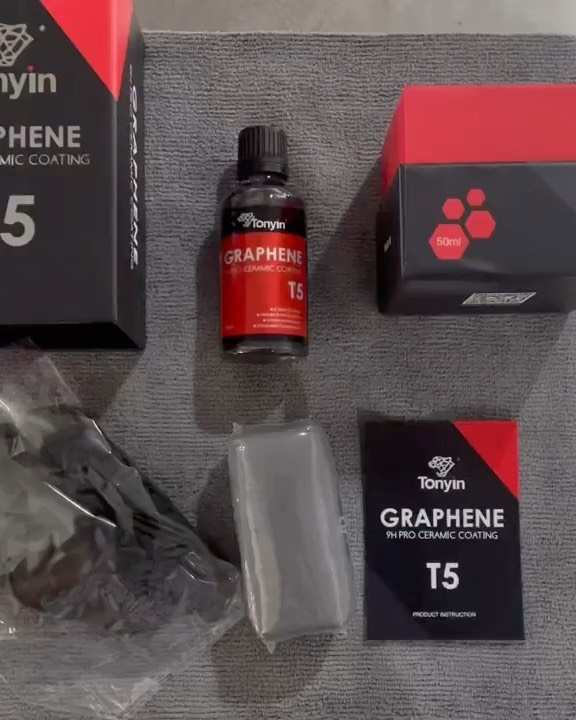

Contents of the Tonyin Graphene 9H ref : T5B

► One 50 ml nano ceramic coating bottle

► One application pad

► One pair of gloves

► One microfibre cloth

Substrates

For use on bodywork, fairings, and varnished helmets. Also suitable for plastics and metals.

The effectiveness of nano ceramic coatings in protecting against sunlight, scratches, water, contaminants, and corrosion applies to all types of surfaces — not only automotive or motorcycle, but also architectural. The nano ceramic coating adheres directly to many bare substrates such as plastics and metals. For large-quantity orders, please contact us.

9H hardness :

This is the highest resistance and hardness rating on the Mohs scale. This performance classification, commonly used for glass, defines the material’s resistance to abrasion and scratching.

Safety

Harmful product. Please refer to the safety data sheet available on this web page, and strictly follow all safety precautions during application.

Available in large volumes for industrial and architectural use.
